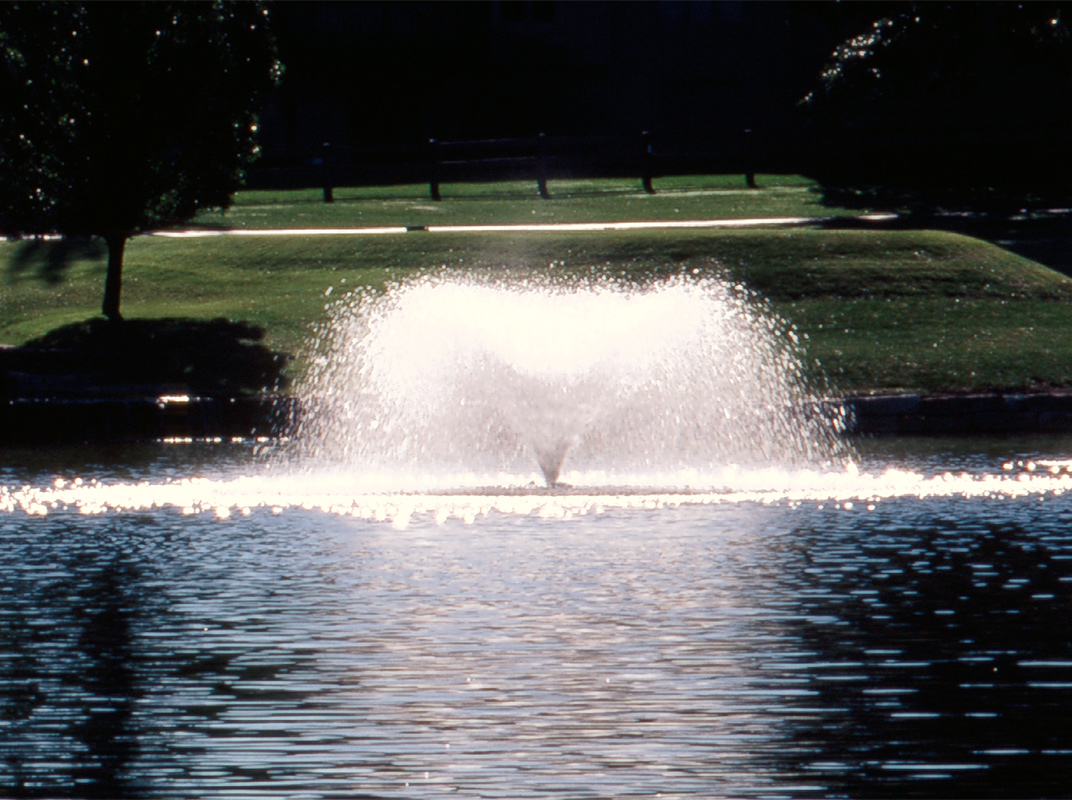

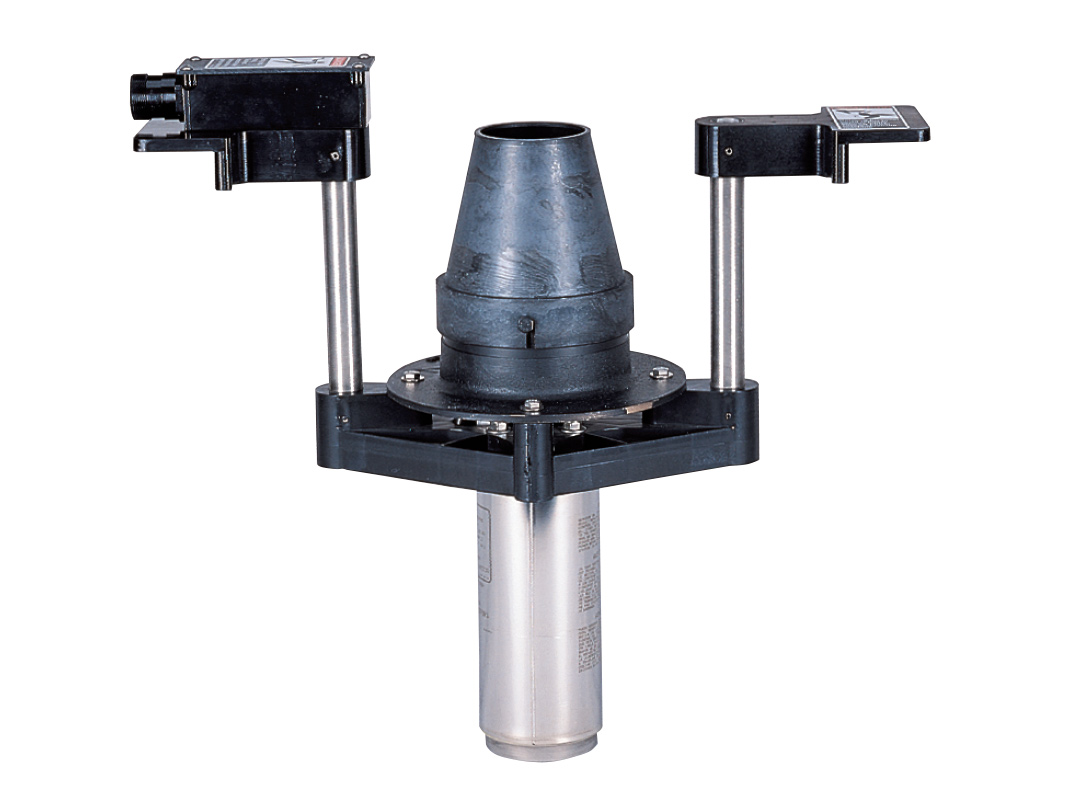

Description Font`N-Aire Platinum 5HP Fountain The Font`N-Aire Platinum 5HP fountain line has four major components: FLOAT – constructed of rugged polyethylene molded plastic with UV inhibitors and filled with non-hygroscopic pressure molded polystyrene foam. POWER DRIVE ASSEMBLY – mounting structure (drive structure assembly), pump/propeller, nozzle, and motor. ELECTRICAL SERVICE CABLE ASSEMBLY – Consisting of a standard 100’ length of AWG# 12/4 submersible cable and a submersible quick disconnect connector, which conveniently plugs into the fountain. CONTROLS – These controls feature a 24-hour time clock with multiple off/on trippers, a Franklin Electric start and run QD capacitor box, and an inline ELCI ground fault protector. Additionally, all of these components come prewired and mounted on a 16” x 14” plate. It is noteworthy that Air-O-Lator exclusively employs the Franklin Electric 600M submersible motor for all fountain lines. This water-cooled and lubricated motor is purposefully designed for lake and pond fountain applications, ensuring environmental safety. The CENTRIFUGAL PUMP DISPLAY FOUNTAIN’s distinctive center discharge pump design ensures that both the shaft of the submersible motor and the discharge remain in a vertical position. Consequently, this design feature allows the entire weight of the fountain to be concentrated in the center of the float. Moreover, this design facilitates the easy installation and removal of the fountain from the float, eliminating the need for special mounting brackets or hardware. Additionally, our centrifugal pump design excels at producing high pressure, enabling the creation of impressive heights and displays while requiring significantly less horsepower compared to other fountain equipment. It is important to note that this fountain is intended solely for aesthetic purposes, as the volume of water being pumped into the air is not sufficient to be considered an aerating device according to oxygen transfer testing and Air-O-Lator’s stringent standards. Features: No seals or bearings to maintain. High speed, foul resistant propellers or impellers, provide high shear water spraying action. No lazy sprays, bubbles, or slow boil of water. One piece square flotation for stability to minimize any oscillation that can occur with round floats. Watertight, removable, 100’ power cable is standard. Additional cable lengths are available in 50’ increments. ETL listed (ANSI/UL508) control panel with time clock (adjustable in 15-minute increments), and Equipment Leakage Circuit Interrupter (ELCI) (US only). Exclusive Franklin Electric Sand Fighter submersible motor, which implements the use of a silicon carbide mechanical sealing system. 3 year Limited Warranty 5HP – 11′ Tall x 35′ Width
